The Hi-therm LUMIA TECH 30 Dry electric water heater is a flagship model in our series of modern flat water heaters, offering a compact footprint and advanced technological solutions. Featuring an elegant, ultra-slim design with a depth of only 312 mm, this boiler provides a reliable supply of hot water for daily needs while occupying minimal space in your home.
A key feature of the device is the intelligent heating system with two "dry" heating elements with a total power of 2000 W. The heating elements are fully isolated from direct contact with water by special protective sleeves, which drastically reduces scale formation, protects the system from burnout, and significantly extends the service life of the unit. The inner tank construction is protected by high-quality enamel coating and a magnesium anode.
The model is equipped with an intelligent electronic panel with a touch LED display, allowing for flexible power management (modes of 1000 W and 2000 W) to optimize the load on the electrical network. High-density thermal insulation, 35 mm thick, reliably retains heat, reducing energy losses to a minimum.
Key Advantages:
• Compact and ultra-slim body: maximum efficiency in a flat design (depth of only 312 mm) for convenient installation in confined spaces.
• "Dry" heating system: two independent heating elements (2000 W) without water contact ensure maximum service life and reliability in regions with hard water.
• Flexible power management: choice between economic (1000 W) and rapid (2000 W) heating modes.
• Touch LED display: modern intuitive control with precise display of current/set temperature and remaining time in timer mode.
• Energy-saving mode: 35 mm reinforced insulation and a special temperature maintenance mode (45°C) significantly reduce power consumption.
• Hygienic Anti-bact protection: automatic water heating to 85°C for complete tank disinfection, bacteria elimination (including Legionella), and prevention of unpleasant odors.
Hi-therm LUMIA TECH 30 Dry — maximum comfort, high energy efficiency, and European reliability for your home.
| Technical Parameter | Official Value and Engineering Explanation |
|---|---|
| Number and type of heating elements | 2 x Dry (Dry Heavy Duty) — two independent heating elements protected from direct contact with water by enameled steel sleeves. If one element fails, the water heater continues to operate with the other. |
| Rated power | 1000 W / 2000 W (Step regulation) — the ability to choose between two operating modes: 1 kW for maintenance or use in homes with weak wiring, and 2 kW for maximum heating speed. |
| Actual useful volume | 31.5 liters — optimal internal volume of the dual-tank system, ensuring quick hot water availability for daily needs. |
| Insulation thickness and type | 35 mm (High-density polyurethane) — reinforced thermal insulation layer made of environmentally friendly, CFC-free material. Minimizes daily heat loss, operating on the "thermos" principle. |
| Operating temperature range | from 30 °C to 75 °C — smooth electronic regulation with 1-degree precision. Additionally, an automatic "Anti-bact" mode with heating up to 85 °C is provided for thermal disinfection. |
| Tank construction and material | Enameled structural steel (1.8 mm) — heavy-duty inner tank walls capable of withstanding high operating pressure, coated with premium fine-dispersed glass enamel to protect welds. |
| Corrosion protection | Magnesium anode (Ø28x105 mm) — a protective element with a high content of pure magnesium that neutralizes the chemical aggressiveness of water and prevents hard scale buildup. |
| Weight of the unit (net) | 21.7 kg — the solid net weight confirms the use of high-quality structural steel rather than lightweight, budget alloys. |

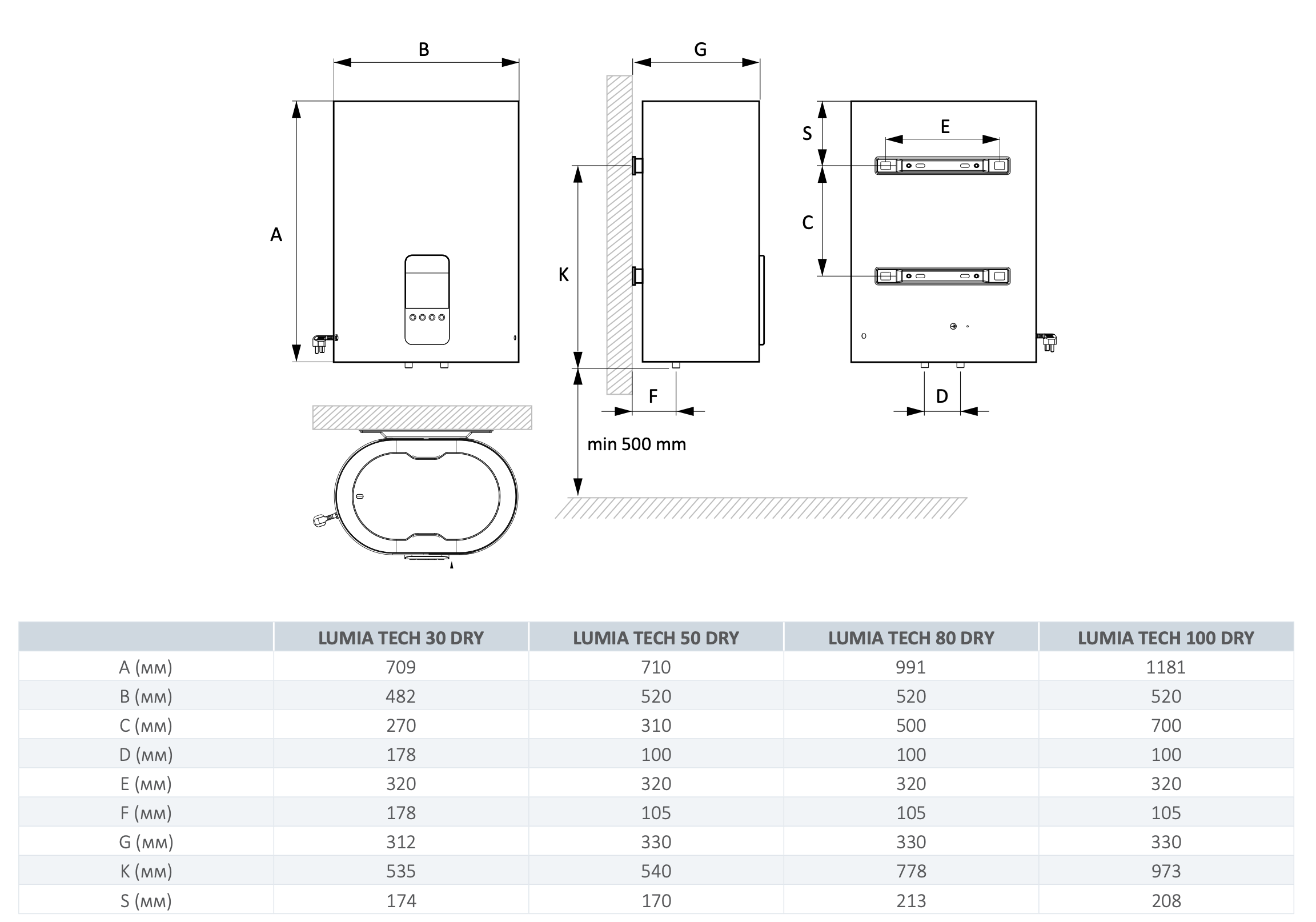

| Overall dimensions (W x D x H) | 482 x 312 x 709 mm — unique Flat-format side ratio. A depth of only 31.2 cm allows the water heater to be fully integrated into standard kitchen furniture or utility cabinets. |
| Hydraulic connection | G 1/2" (Bottom connection) — standard thread diameter for connecting cold (blue marker) and hot (red marker) water using flexible hoses or pipes. |
| Protection and safety class | IPX4 (Splash protection) / Safety thermostat at 93 °C — complete protection of electronic components from moisture and dust, with a built-in thermal relay to instantly disconnect the unit in case of critical overheating. |
Basic factory package contents:
The Hi-therm LUMIA TECH 30 Dry water heater is supplied in branded protective packaging. The package includes: a power cable with grounding and a European plug (EU-plug), a multifunctional safety non-return valve (8 bar), heavy-duty wall mounting anchors, a detailed operating manual, and an official warranty card. The water heater is ready for classic vertical wall installation.
Hi-therm LUMIA TECH 30 Dry — advanced engineering specifications for the uncompromising comfort of your home.
